RPA3-SLDP

USE OF PRODUCT

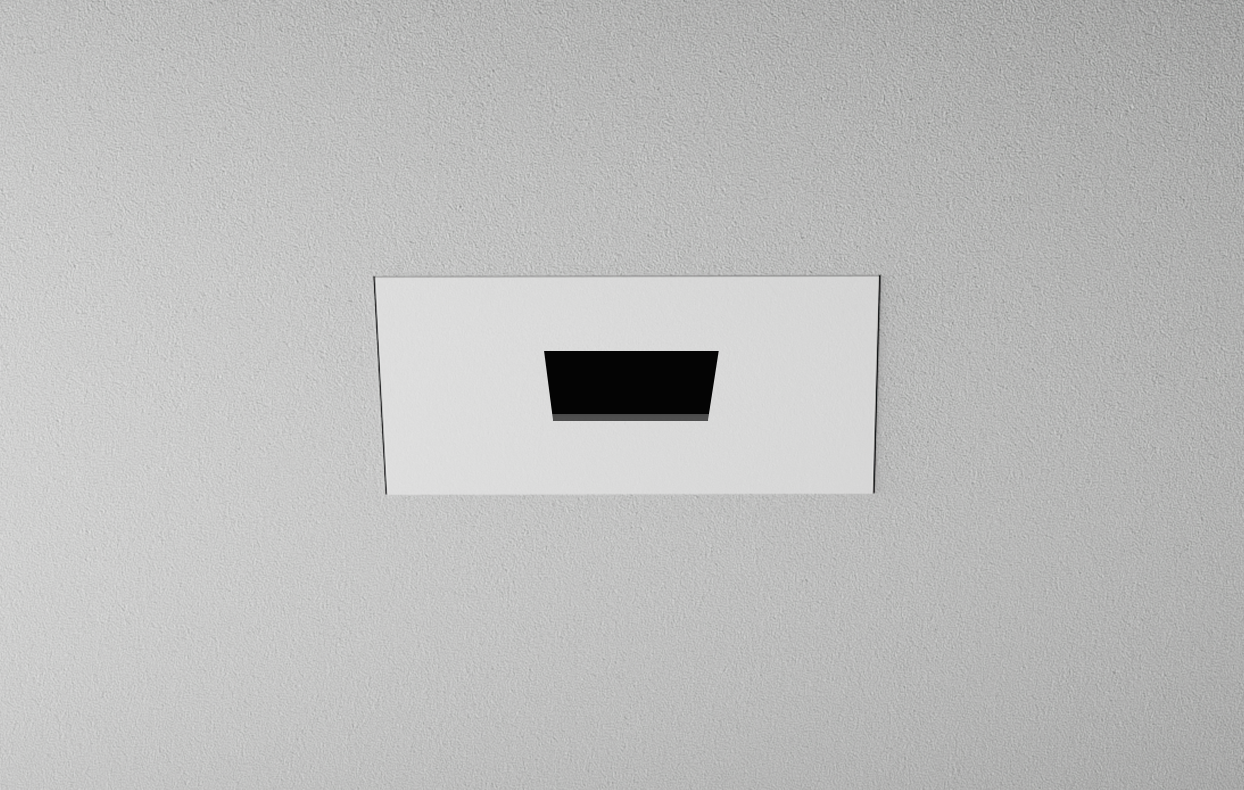

The 3” PRIME Downlight is a small aperture fixture with shallow height that may be used in residential and commercial applications. Die-cast trims, with an assortment of color temperatures, optics, and dimmable drivers. May be used in plaster, wood, and marble ceilings.

PRIME FEATURES
Color Temperature: 2700K, 3000K, 3500K, or 4000K
SDCM: 2-step binning
Color Rendering Index: 93+ CRI
Optical Lens: 12°, 22°, 27°, 35°, 45°
Trim: Diecast
LED Life: 50,000 Hours
LED Type: Cree LED
Driver Info: 120-277V, 50/60 Hz, PF>0.9, THD<0.20
Warranty: 5-year limited warranty

LED ENGINE
LED engine available with CREE LEDs in 2700K, 3000K, 3500K, or 4000K in standard 93+ CRI. 2 Step MacAdam ellipse allows for color consistency between fixtures. LED mounted to aluminum heat sink for maximum life output and thermal management. LED engine is accessible from below ceiling.

ADJUSTMENT
- Housing provides for 359º locking rotation
- Aperture collar compatible up to 1½” ceiling thickness.
- Accommodation for 2” or 3” ceiling thickness available upon request.

OPTICAL LENS & FILTERS (Field Replaceable)
Field replaceable optical lens available in 12°, 22°, 27°, 35° and 45°. Easily achieve narrow spot to wide flood beam pattern. Accepts up to 2 filters.

DIMMING
Available in seven driver selections. (ID) Standard all-inclusive ELV (120V), Triac (120V), and 0-10V(120-277V) dimming driver called Intelligent Drive, 120-277V.  (LDE1) Lutron Hi-Lume 1% Ecosystem with soft on, fade to black dimming, 120-277V. (LTE) Hi-Lume 1% 2-wire, 120V. (L3DA) Hi-lume 1% EcoSystem/3-Wire L3D Driver (EEI) eldoLED Eco 1% Dim (0-10V), 120-277V. (EDIO) eldoLED Solo 0.1% Dim(0-10V), 120-277V. (EDID) eldoLED Solo 0.1% Dim (DALI), 120-277V. Driver accessible from below ceiling.

THERMAL MANAGEMENT
Ambient temperatures at fixture location should not exceed -20° to 40°C.

TRIM
Die-cast trim. Consult factory for made to order finishes.

EMERGENCY BATTERY
Optional emergency battery available for a minimum of 90 minutes with remote test switch in 800 delivered lumens.

LABELS/COMPLIANCE/WARRANTY
CSA Listed for US and Canada.
Energy Star certified product.
Dry/Damp/Wet location rated.
State of California Title 24 and JA8 compliant.
5-year limited warranty.
