RPA3-SFD

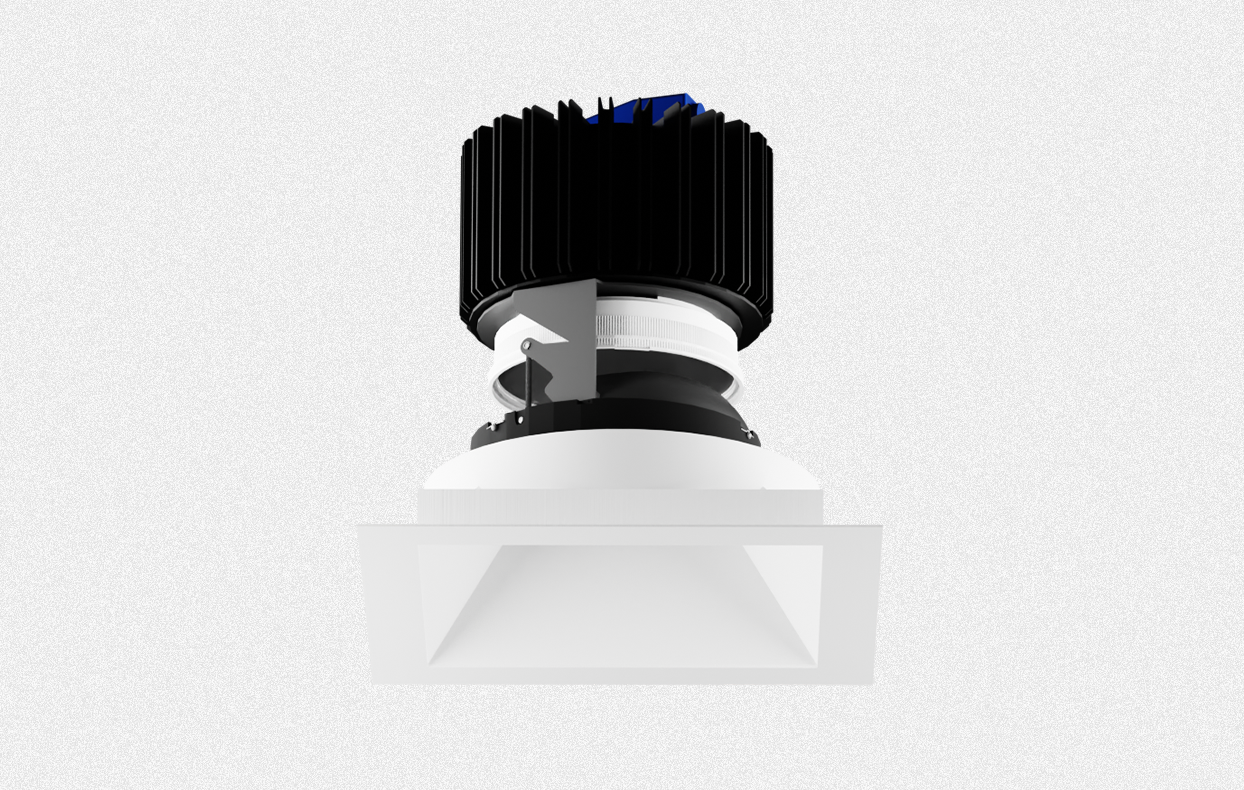

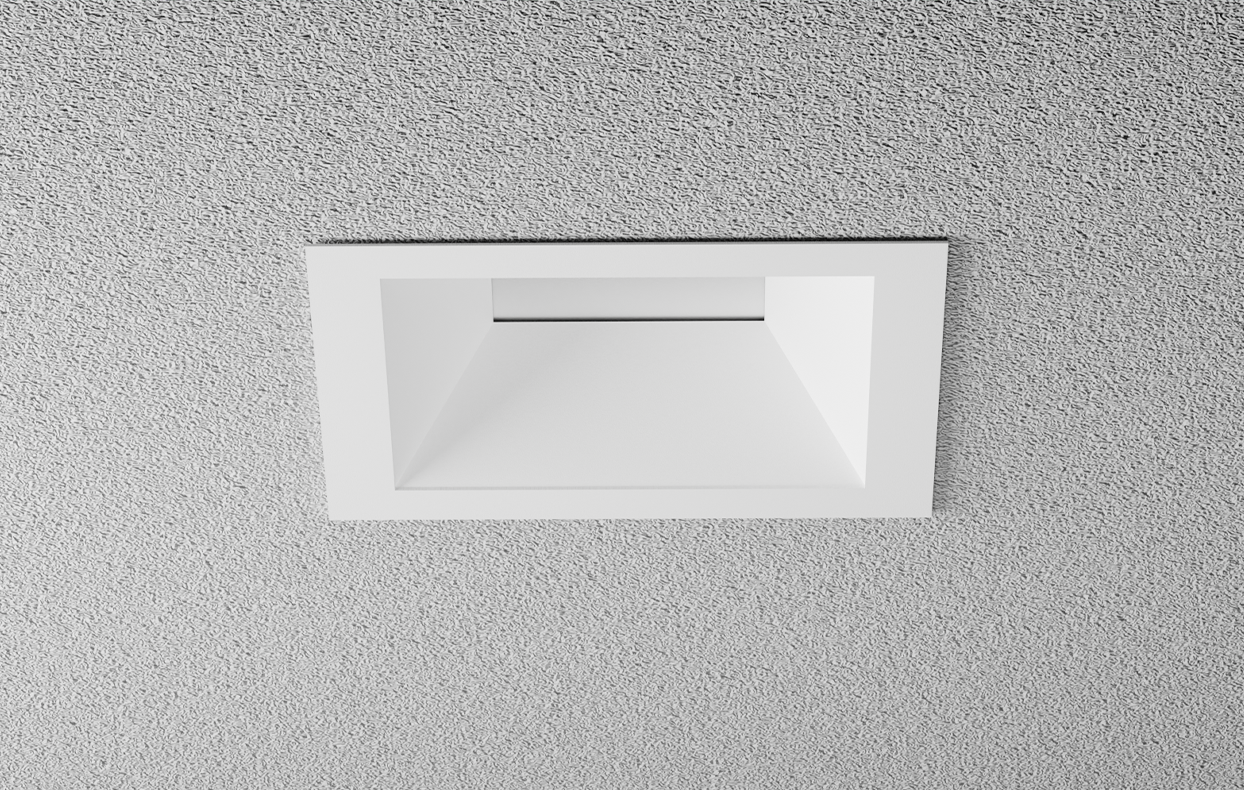

3" PRIME LED Architectural
Square Flanged Downlight

Spec sheet

Installation sheet

Revit

IES

USE OF PRODUCT
The 3" PRIME Downlight is a small aperture fixture with shallow height that may be used in residential and commercial applications. Available in die cast trims, with an assortment of color temperatures, optics and dimmable drivers.

LED ENGINE
LED engine available with CREE LEDs in 2700K, 3000K, 3500K, or 4000K in standard 93+ CRI. 2 Step MacAdam ellipse allows for color consistency between fixtures. LED mounted to aluminum heat sink for maximum life output and thermal management. LED engine is accessible from below ceiling.

FRAME CONSTRUCTION
IC rated housing constructed from 16 gauge heavy duty powder coated cold rolled steel frame. Junction box with 1/2” knockouts. Butterfly bracket included to accommodate adjustable bar hangers or C-channel (ordered separately).

ADJUSTMENT
- Housing provides for 359º locking rotation
- Aperture collar adjusts 15º± horizontally within frame for square ceiling alignment
- Collar notch allows for easy alignment for square applications.
- Aperture collar compatible up to 1½" ceiling thickness.
- Accommodation for 2” or 3” ceiling thickness available upon request.

OPTICAL LENS & FILTERS(Field Replaceable)
Field replaceable optical lens available in 12°, 22°, 27°, 35° and 45°. Easily achieve narrow spot to wide flood beam pattern. Accepts up to 2 filters.

DIMMING
Available in 7 driver selections. (ID) Standard all-inclusive ELV(120V), Triac(120V), and 0-10V(120-277V) dimming driver called Intelligent Drive, 120-277V. (PEQ0) Lutron Hi-Lume Premier Ecosystem 0.1% w/soft on, fade to black dimming, 120-277V. (LDE1) Lutron Hi-Lume 1% Ecosystem with soft on, fade to black dimming, 120-277V. (LDE5) Lutron Hi-Lume 5% Ecosystem, 120-277V.  (L3DA) Hi-lume 1% EcoSystem/3-Wire L3D Driver (EEI) eldoLED Eco 1% Dim (0-10V), 120-277V. (EDIO) eldoLED Solo 0.1% Dim(0-10V), 120-277V. (EDID) eldoLED Solo 0.1% Dim(DALI), 120-277V. Driver accessible from below ceiling.

THERMAL MANAGEMENT
Ambient temperatures at fixture location should not exceed -20° to 40°C.

EMERGENCY BATTERY
Optional emergency battery available for a minimum of 90 minutes with both remote test switch in 800 delivered lumens.

TRIM
Trim available in die cast or spun aluminum. Consult factory for made to order finishes. Flanged trim is compatible with all ceiling materials.

LABELS/COMPLIANCE/WARRANTY
- CSA Listed for US and Canada
- Dry/Damp/Wet location rated.
- Energy Star
- Title 24, JA8 Compliant
- 5 Year limited warranty.
