RPA3-DB-2-SFA

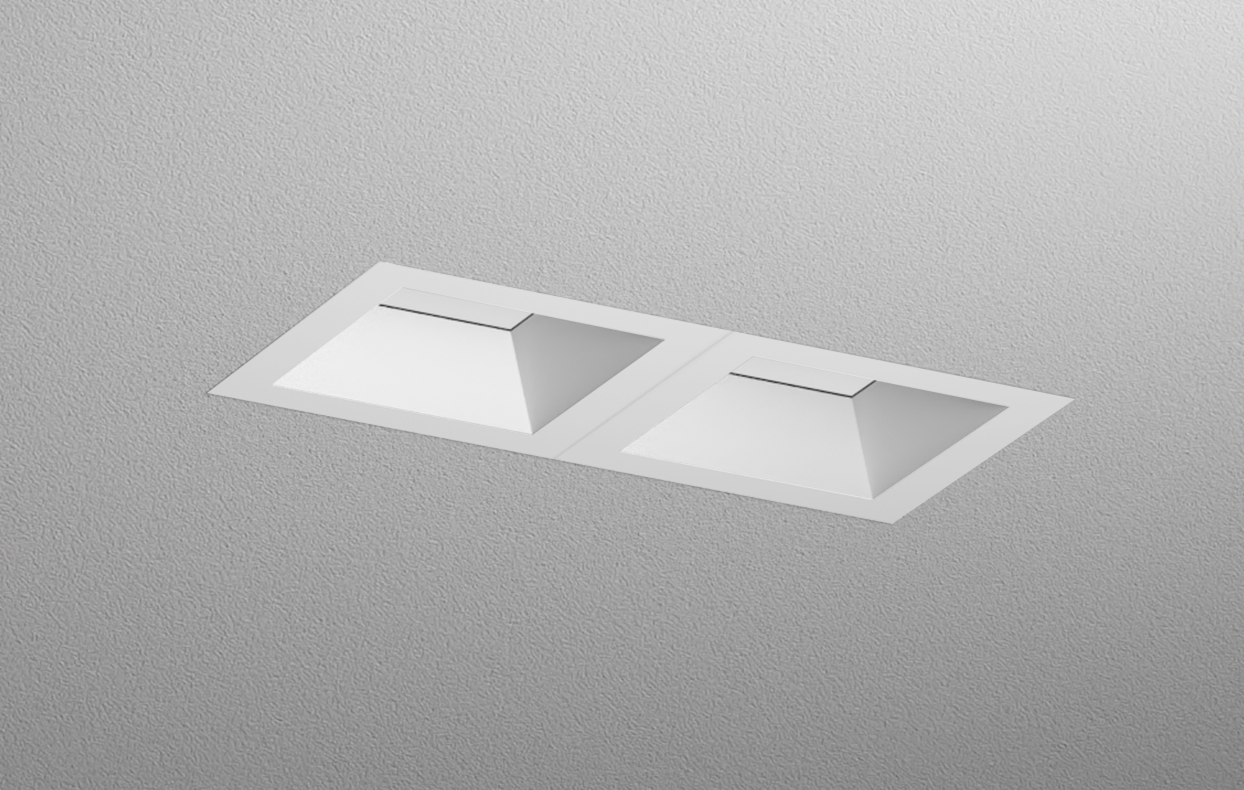

Prime 3" LED Architectural Multiple Recessed Square Flange Dedicated Bevel (Two Module)

Spec sheet

Installation sheet

Revit

IES

USE OF PRODUCT
The 3" Prime architectural recessed multiple series offers a variety of lumens, color temperatures, beam angles, and filter options that may be modified in the field. Modules are available in bevel, regress, or snoot appearance.

LED ENGINE
LED engine available with CREE LEDs in 2700K, 3000K, 3500K, or 4000K in standard 90+ CRI. 2-step MacAdam ellipse allows for color consistency between fixtures. The LED is mounted to an aluminum heat sink for maximum life output and thermal management. LED engine is accessible from below the ceiling.

FRAME CONSTRUCTION
Housing is constructed from a 20-gauge powder-coated cold-rolled steel frame. Butterfly brackets available to accommodate adjustable, c-channel, and flat bar hanger (order separately).


ADJUSTMENT
- 0–35° Hot aiming.

OPTICAL LENS
Field replaceable total internal reflection (TIR) available in 18°, 30°, 50°, and 80°. Easily achieve narrow spot to wide flood beam pattern. Available filters include frosted, honeycomb, or solite.

DIMMING
Available in six driver selections. (ID) Standard all-inclusive ELV (120V), Triac (120V), and 0–10V (120–277V) dimming driver called Intelligent Drive, 120–277V. (LDE1) Lutron Hi-Lume 1% Ecosystem with soft-on, fade-to-black dimming, 120–277V. (L3DA) Hi-lume 1% EcoSystem/3-Wire L3D Driver (EEI) eldoLED Eco 1% Dim (0–10V), 120–277V. (EDIO) eldoLED Solo 0.1% Dim (0–10V), 120–277V. (EDID) eldoLED Solo 0.1% Dim (DALI), 120–277V. Driver accessible from below ceiling.

THERMAL MANAGEMENT
Fixture location ambient temperature should not exceed -20° to 40°C.

EMERGENCY BATTERY
Optional emergency battery available for a minimum of 90 minutes with remote test switch in 800 delivered lumens.

LABELS/COMPLIANCE/WARRANTY
CSA listed for US and Canada.
Energy Star certified product.
Dry/Damp/Wet location rated.
State of California Title 24 and JA8 compliant.
5-year limited warranty.
